XX-720G - Network Packet Broker

AGGREGATION, REPLICATION, ADVANCED FILTERING, LOAD BALANCING

Overview
XX-720G is a high-density Network Packet Broker, bringing you the power and flexibility of network traffic management with a total throughput of 720 Gbps in a 1U rack space. The XX-720G features 48 SFP+ (1/10 Gbps) and 6 QSFP+ ports (40 Gbps) providing aggregation, replication, filtering and load balancing in very high bandwidth port
monitoring and analysis scenarios

Network Packet Brokers optimize the performance of network analysis and security tools by delivering filtered traffic of interest, helping network engineers to quickly solve application performance bottlenecks and troubleshoot problems on the network.

AGGREGATION

Aggregate two or more incoming streams of data into a single stream. Combine with replication and filtering to send different parts of the aggregated traffic to different output ports.

REPLICATION

Replicate a stream of data to multiple output ports. Combine with the aggregation and filtering features to send different parts of the aggregated traffic to different output ports.

FILTERING

Ensure optimum efficiency of monitoring, security tools, and bandwidth utilization by filtering traffic such that only appropriate data is sent to these network tools.

LOAD BALANCING

Distribute the traffic load between different output ports to optimize resource utilization.

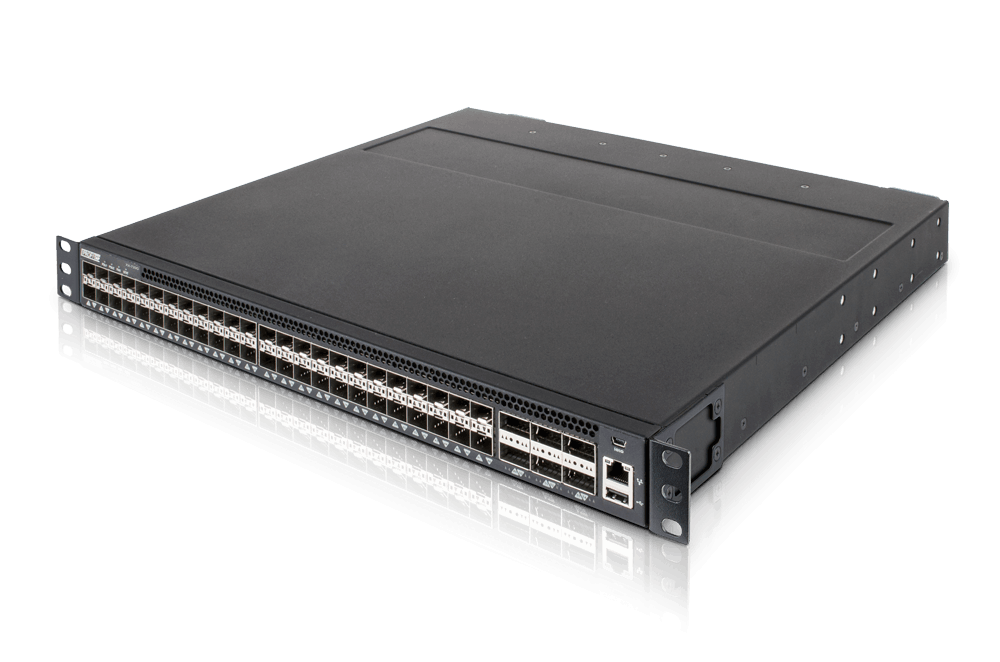

xx-720G Packet Broker

Features

  • High-density, 720Gbps throughput in
  • Ingress VLAN Tagging
  • Supports 1G, 10G, 40G
  • RESTful API support
  • Layer 2–4 filtering
  • Local and remote management (CLI, SSH, GUI, SNMP, Syslog)
  • Redundant, hot-swappable, Platinum efficiency PSUs and fan modules
  • Centralized authentication via Profitap Supervisor (local users,TACACS+, RADIUS)

Port Licensing

XX-720G-242-AC - 24 x 1/10G SFP+, 2 x 40G QSFP+

XX-720G-486-AC - 48 x 1/10G SFP+, 6 x 40G QSFP+

Power

  • 2 x 550 W, 80+ Platinum, 100–240 VAC, 50–60 Hz

Accessories

  • SFP modules

Interfaces

  • 48 x SFP+ ports
  • 6 x QSFP+ ports
  • 1 x RJ45 (serial) out-of-band management
  • 1 x mini-USB console (RS232)
