IES-3160 Industrial Ethernet Switch

Industrial Type 24 port Managed Ethernet Swit

Overview
IES-3160 is an managed Redundant Ring Ethernet switch with 16x10/100Base-T(X) ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-RSTP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. All function of IES-3160 can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40 to 75°C can satisfy most of operating environment.

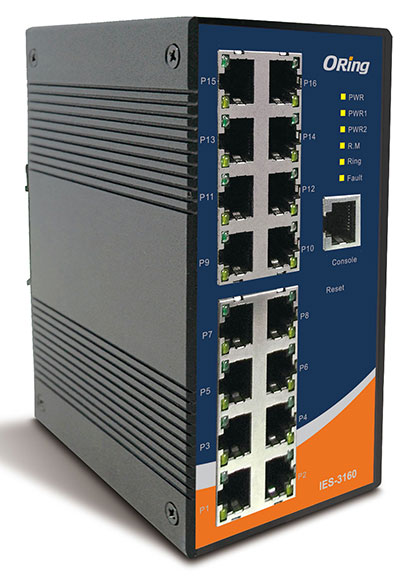

ies-3160

Features

  • 3,2Gbps Switch bandwidth and 2,98µs latency
  • Support IPV6 new internet protocol version
  • Support O-Ring, O-Chain and IEC 62439-2 MRP for Ethernet redundancy
  • MSTP/RSTP/STP (IEEE 802.1s/w/D)
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
  • Support Modbus TCP
  • Supports SNTP and PTP Client for clock synchronization
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
  • Dual DC inputs
  • Rigid IP-30 housing; DIN-Rail and wall mounting

IES-3160 Specifications

Interfaces

  • 16x 10/100Base-T(X) ports in RJ45
  • 1x RS232 Console Port (RJ45)
  • Relay output
Regulatory Approvals

Power

  • Dual DC inputs. 12-48VDC on 6-pin terminal block
  • Power Consumption (Typ.) 15 Watts
  • Overload Current Protection Present

Environmental

  • Operating Temperature -40 to 75°C (-40 to 167°F)
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 74.3 (W) x 107.5 (D) x 153.6 (H)
  • Enclosure: metallic - IP30
  • Warranty 5 years

Accessories

  • NDR-75 series, 75W Din Rail Power Supply
  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
  • Open-Vision M500, Network Management Windows
  • DBU-01 Device Configuration Backup Unit
