Switches Industriales Managed - Carril DIN y Rack 19"

Familia de Switches Ethernet Managed L2 de grado Industrial. La mejor solución para instalaciones que requieran de anillos redundantes ultraveloces y un elevado rendimiento, en ambientes exigentes. La esclusiva tecnologia de anillos permite recuperar las comunicaciones en pocos milisegundos. Ver Ethernet Industrial

Hardware Fanless, robusto de grado industrial

Múltiples arquitecturas e interoperabilidad con anillos redundantes

Protocolos Industriales MODBUS, PROFINET, EtherNet/IP, EtherCAT

Accesorios

Industrial Standards

EMC - EN 61000-6-2

EMC - EN 61000-6-4

Shock - IEC 60068-2-27

Drop - IEC 60068-2-32

Vibration - IEC 60068-2-64

Switch Industrial Fast Ethernet Managed - Carril DIN

Switch Industrial de tipo Gestionable. Entradas de alimentación redundantes, salida relé alarma, y protección contra sobretensiones. Montaje en carril DIN.

IES-3080

Switch Managed L2 8 puertas

8x 10/100TX
IPv6, IEC 62439-2 MRP, STP/RSTP/MSTP, Modbus TCP, ORing, Soporte SNTP
Temp.: -40ºC a 70ºC

IES-3062FX

Switch Managed L2 8 puertas

6x 10/100TX
2x 100FX(Multimodo/Monomodo SC)
IPv6, IEC 62439-2 MRP, STP/RSTP/MSTP, Modbus TCP, ORing, SNTP
Temp.: -40ºC a 70ºC

IES-3082GP

Switch Managed L2 10 puertas

8x 10/100TX
2x 100/1000BaseX(SFP)
IPv6, IEC 62439-2 MRP, STP/RSTP/MSTP, Modbus TCP, O-Ring, Soporte SNTP Clock
Temp.: -40ºC a 75ºC

IES-3082GP-LA

Switch Managed L2 8 puertas cost effective

8x 10/100TX
2x 100/1000BaseX(SFP)
IPv6, MRP, STP/RSTP/MSTP, Modbus TCP
Temp.: -40ºC a 75ºC

IES-3073GC

Switch Managed L2 10 puertas

7x 10/100TX
3x Combo Gigabit (RJ45/SFP)
IPv6, IEC 62439-2 MRP, STP/RSTP/MSTP, Modbus TCP, ORing, Soporte NTP Clock Sync.
Temp.: -40ºC a 70ºC

IES-3082GC

Switch Managed L2 10 puertas

8x 10/100TX
2x Combo Gigabit (RJ45/SFP)
IPv6, MRP, STP/RSTP/MSTP, Modbus TCP, ORing, Soporte SNTP Clock Sync.
Temp.: -40ºC a 75ºC

IES-3160

Switch Managed L2 16 puertas

16x 10/100TX
IPv6, MRP, STP/RSTP/MSTP, Modbus TCP, ORing, Soporte SNTP Clock Sync.
Temperatura de Servicio: -40ºC a 70ºC

IES-3162GC

Switch Managed L2 18 puertas

16x 10/100TX
2x Combo Gigabit (RJ45/SFP)
IPv6, MRP, STP/RSTP/MSTP, Modbus TCP, ORing, SNTP Clock Sync.
Temp.: -40ºC a 75ºC

IES-3164GP-LA

Switch Managed L2 alta densidad de 20 puertas

16x 10/100TX + 4x 100/1000BaseX(SFP)
IPv6, MRP, STP/RSTP/MSTP, Modbus TCP, ORing, NTP Clock Sync.
Temperatura de Servicio: -40ºC a 75ºC

IES-3240

Switch Managed L2 alta densidad de 24 puertas Cantidad minima 50uds

24x 10/100TX
IPv6, MRP, STP/RSTP/MSTP, Modbus TCP, ORing, SNTP Clock Sync.
Temperatura de Servicio: -40ºC a 75ºC

Switch Industrial Gigabit Managed Layer2

Switch Industrial Gigabit Ethernet de tipo Gestionable. Rango Extendido de Temperaturas. Entradas de alimentación redundantes, salida relé alarma, y protección contra sobretensiones. Montaje en carril DIN.

IGS-3032GC

Switch Managed L2 Gigabit 5 puertas

3x 10/100/1000TX
2x Combo Gigabit (RJ45/SFP)
IPv6, IEC 62439-2 MRP, STP/RSTP/MSTP, PTP, Modbus TCP
Temperatura: -40ºC a 70ºC

IGS-C3042GP

Switch Managed L2 Gigabit 6 puertas

4x 10/100/1000TX
2x 100/1000/2500BaseX(SFP)
IPv6, IEC 62439-2 MRP, STP/RSTP/MSTP, PTP, Modbus TCP, O-Ring

IGS-C3082

Switch Managed L2 Gigabit 10 puertas

8x 10/100/1000TX
2x 100/1000/2500BaseX(SFP)
IPv6, IEC 62439-2 MRP, STP/RSTP/MSTP, PTP, Modbus TCP, O-Ring

IGS-9084GP

Switch Managed Gigabit 12 puertas

8x 10/100/1000TX
4x 100/1000BaseX(SFP)
IPv6, IEC 62439-2 MRP, IEEE 1588v2 Clock Sync., Modbus TCP, IEEE802.3az Energy Efficient, O-Ring

IGS-9084GP-LA

Switch Managed Gigabit 12 puertas

8x 10/100/1000TX
4 x 100/1000BaseX(SFP)
IPv6, MRP, STP/RSTP/MSTP, EtherNET/IP, Modbus TCP, CyberHardened

IGS-9822DGP+

Switch Managed Gigabit 12 puertas

8x 10/100/1000TX
2x 100M/1G/2,5GBaseX(SFP)
2 x 1G/10GBaseX(SFP)
IPv6, IEC 62439-2 MRP, STP/RSTP/MSTP
IEEE 1588v2 Clock Sync., Modbus TCP

IGS-9122GP

Switch Managed Gigabit 14 puertas

12x 10/100/1000TX
2x 100/1000BaseX(SFP)
IPv6, IEC 62439-2 MRP, IEEE 1588v2 Clock Sync., Modbus TCP, IEEE802.3az Energy Efficient, O-Ring

IGS-3164GP-LA

Switch Managed Gigabit 20 puertas

16x 10/100/1000TX
4x 100/1000BaseX(SFP)
IPv6, IEC 62439-2 MRP, IEEE 1588v2 Clock Sync., Modbus TCP, IEEE802.3az Energy Efficient, O-Ring

IGS-9812GP

Switch Managed L2 Gigabit 20 porte

8x 10/100/1000TX
12x 100/1000BaseX(SFP)
IPv6, ERPS Ring, RSTP, STP, MRP, IEEE 1588v2 Clock Sync., Modbus TCP

IGS-9168GP

Switch Managed L2 Gigabit 24 porte

16x 10/100/1000TX
8x 100/1000BaseX(SFP)
IPv6, ERPS Ring, RSTP, STP, MRP, IEEE 1588v2 Clock Sync., Modbus TCP

EHG7706

Switch Managed L2 Gigabit

4x 10/100/1000TX
2x 100/1000/2500BaseX(SFP)
IPv6, ERPS, STP, RSTP, MSTP, MRP, Modbus TCP, IEEE 1588v2 Clock Sync HW based TC/BC

EHG7504

Switch Managed L2 Gigabit

4x 10/100/1000TX
4x 100/1000BaseX(SFP)
IPv6, ERPS, MRP, STP/RSTP/MSTP, ModbusTCP, PROFINET CC-B v2.33 certified
EN50155 & NEMATS2

EHG7508

Switch Managed L2 Gigabit

8x 10/100/1000TX
IPv6, ERPS, MRP, STP/RSTP/MSTP, Modbus TCP, PROFINET CC-B v2.33
INEMA TS2 & EN50155

EHG7708

Switch Managed L2 Gigabit, SLIM

8x 10/100/1000TX
IPv6, ERPS, STP, RSTP, MSTP, MRP
IEEE 1588v2 Clock Sync HW based TC/BC. Modbus TCP

EHG7711

Switch Managed Layer2 Gigabit

8x 10/100/1000TX
2x 100/1000/2500BaseX(SFP)
1x 100/1000BaseX(SFP)
IPv6, ERPS, STP, RSTP, MSTP, MRP, IEEE 1588v2 Sync HW based TC/BC, Modbus TCP

EHG7512

Switch Managed Gigabit 12 puertas

8x 10/100/1000TX
4 x 1G/10GBaseX(SFP)
IPv6, ERPS Ring, RSTP, STP, MRP, IEEE 1588v2 Clock Sync., Modbus TCP

EHG7516

Switch Managed L2 Gigabit 16 puertas

12x 10/100/1000TX
4x 1G/10GBaseX(SFP)
IPv6, ERPS Ring, RSTP, STP, MRP, IEEE 1588v2 Clock Sync., Modbus TCP

EHG7520

Switch Managed L2 Gigabit 20 puertas

12x 10/100/1000TX
4x 1000BaseX(SFP)
4x 1G/10GBaseX(SFP)
IPv6, ERPS Ring, RSTP, STP, MRP, IEEE 1588v2 Clock Sync., Modbus TCP

IDS-305G

Switch Managed L2 Gigabit

4x 10/100/1000TX
1x 1000BaseX(ST/SC)
IPv6, STP, RSTP, MSTP, MRP, IEEE 1588v2 Clock Sync. PROFINET & Modbus TCP
ATEX

IDS-710

Switch Managed Gigabit 10 puertas

8x 10/100/1000TX
2x 100/1000/2500BaseX(SFP)
IPv6, IEC 62439-2 MRP, STP/RSTP/MSTP, PROFINET, Modbus TCP
Temperatura de Servicio: -40ºC a 75ºC

IDS-509-SFP

Switch Managed L2 Gigabit 9 puertas

8/6/4x 10/100/1000TX
1/3/5x 100/1000BaseX(SFP)
IPv6, IEC 62439-2 MRP, IEEE 1588v2 Clock Sync., Profinet, Modbus TCP, ATEX
ATEX

IDS-509G

Switch Managed Gigabit

5x 10/100/1000TX
4 x Combo Gigabit(RJ45/SFP)
IPv6, IEC 62439-2 MRP, IEEE 1588v2 Clock Sync., Profinet, Modbus TCP
ATEX

IDS-710CT

Switch Managed L2 Gigabit 10 puertas

8x 10/100/1000TX
2x 1000BaseX(SC / ST)
IPv6, IEC 62439-2 MRP, IEEE 1588v2 Clock Sync., Profinet, Modbus TCP

Switch Industrial Managed - 19" Rackmount

Switch Industrial de tipo Gestionable para rack de 19". Alta densidad. Alimentaciones simples o redundantes en formatos HV y/o LV, salida relé alarma, y protección contra sobretensiones.

RGS-9168GCP

Switch Managed L2 Gigabit de 24 puertas. Alimentaciones HV y LV.

16x Combo Gigabit (SFP/RJ45)
8x 100/1000BaseX(SFP)
IPv6, MRP Ring, RSTP, STP, MRP, Modbus TCP, NTP clock Sync, IEEE 802.3az Energy-Efficient Ethernet, Application-Based QoS. Temp.: -40 a 75ºC

RGS-P9000

Switch Modular de 4 slots, Managed L2 Gigabit hasta 28 puertas. Alimentaciones redundantes HV / LV.

Hasta 24x 10/100/1000TX (3modulos)
Hasta 24x 100/1000BaseX(SFP) (3 modulos)
4x 1G/10GBaseX(SFP) (1 modulo)
IPv6, MRP Ring, RSTP, STP, MRP, IEEE 1588v2 Clock Sync., Modbus TCP, IEC-61850, NemaTS2. Temperatura de servicio: -40ºC a 85ºC

RGS-92222GCP

Switch Managed L2 Gigabit de 26 puertas

22x 10/100/1000TX
2x Combo gigabit
2x 100/1000BaseX(SFP)
IPv6, MRP Ring, RSTP, STP, MRP, Modbus TCP, NTP clock Sync, IEEE 802.3az Energy-Efficient Ethernet, Application-Based QoS. Temp.: -40 a 75ºC

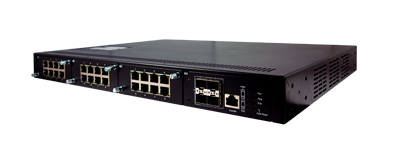

RHG7528

Switch Modular Managed L2 Gigabit, 3 slots hasta 28 puertas. Alimentaciones HV y LV.

Hasta 24x 10/100/1000TX (3modulos)
Hasta 24x 100/1000BaseX(SFP) (3 modulos)
4x 1G/10GBaseX(SFP)
IPv6, ERPS Ring, RSTP, STP, MRP, IEEE 1588v2 Clock Sync., Modbus TCP, EN50155 EN50121-4 Railway, IEC 62443-4-2. Temp: -40ºC a 75ºC

RGS-9244GP

Switch Managed Layer2 Gigabit de 28 puertas. Versiones con alimentación HV y LV.

24x 10//100/1000TX
4x 100/1000 BaseX(SFP)
IPv6, MRP Ring, RSTP, STP, MRP, Modbus TCP, NTP clock Sync, IEEE 802.3az Energy-Efficient, Application-Based QoS. Temp.: -40 a 75ºC

RHG7628

Switch Modular Managed Layer3 Gigabit hasta 28 puertas

Hasta 24x 10/100/1000TX (3modulos)
Hasta 24x 100/1000BaseX(SFP) (3 modulos)
4x 1G/10GBaseX(SFP)
IPv6, Static Routing, RIPv1/v2, OSPFv2, VRRP, ERPS Ring, RSTP, STP, MRP, IEEE 1588v2 Clock Sync., 802.1AE MACsec, PROFINET v2.33 CC-B, Modbus TCP, EN50155 EN50121-4 Railway, IEC 62443-4-2. Temp: -40ºC a 75ºC
