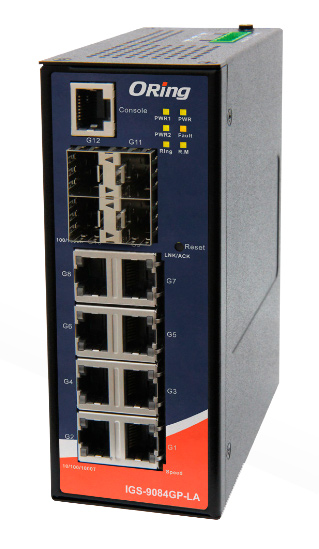

IGS-9084GP-LA

Managed Cyber-hardened 12-port Gigabit Switch with 8x10/100/1000Base-T(X) ports and 4x100/1000Base-X, SFP socket

Overview
IGS-9084GP-LA is slim type managed Ethernet switch with 8x10/100/1000Base-T(X) ports and 4x100/1000Base-X SFP ports. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40 oC to 75 oC. IGS-9084GP-LA can also be managed centralized by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.

igs-9084gp-la

Features

  • 24Gbps Switch bandwidth and 7µs latency
  • IPv6
  • Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings. Standard IEC 62439-2 MRP on request
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
  • Support EtherNet/IP and Modbus TCP protocols
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
  • IEEE 802.3az Energy-Efficient Ethernet
  • Robust EMS design, provide 8KV ESD and 4KV Surge protection
  • According to IEC 62443-4-1 and certified with the IEC 62443-4-2 industrial cybersecurity standards
  • Dual DC inputs
  • Rigid IP-30 housing; DIN-Rail and wall mounting

Interfaces

  • 8x 10/100/1000BaseT(X) Ports in RJ45 Auto MDI/MDIX
  • 4x 100/1000 BaseX SFP Ports
  • 1x RS232 Console Port (RJ45)
  • Relay output

Power

  • Redundant Input Power: Dual DC inputs. 12-48VDC on 6-pin terminal block
  • Power Consumption (Typ.) 13 Watts
  • Overload Current Protection Present

Environmental

  • Operating Temperature -40 to 75°C (-40 to 167°F)
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

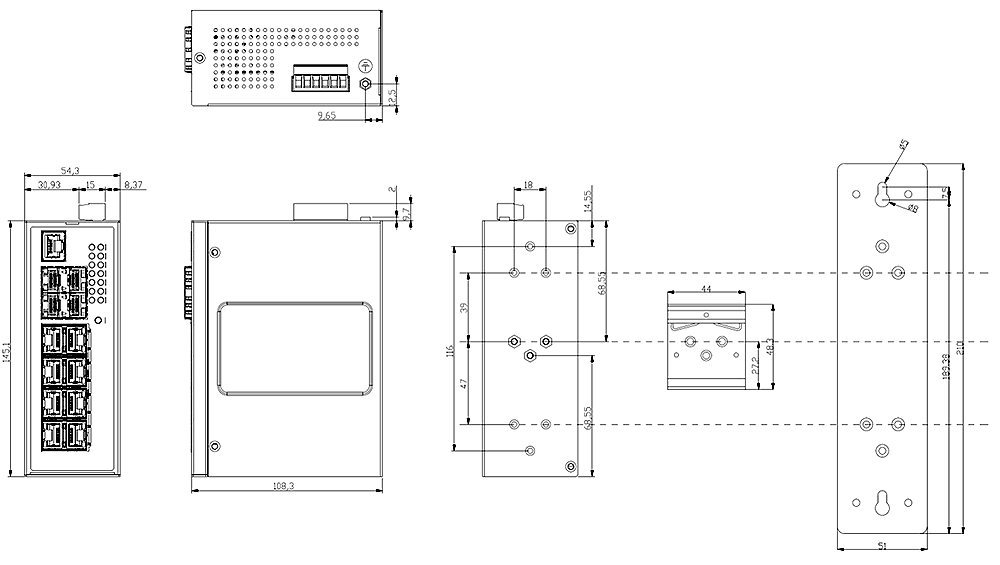

  • Dimensions (mm): 54,3 (W) x 120 (D) x 145,1 (H)
  • Enclosure: metallic - IP30
  • Warranty 5 years

Accessories

  • NDR-75 series, 75W DIN Rail Power Suply
  • NDR-120 series, 120W Din Rail Power Supply
  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
  • DBU-01 Device Configuration Backup Unit
openvision
sfp industrial
power supplies

  • Regulatory Approvals

    • Industriall Cybersecurity IEC 62443-4-1, IEC 62443-4-2
    • EMC CE EMC (EN 55035, EN 55032), FCC Part 15B
    • EMI EN 550232, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
    • EMS EN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11(DIP))
    • Shock IEC60068-2-27
    • Free Fall IEC60068-2-31
    • Vibration IEC60068-2-6
    • Safety UL61010
    • Other EN50155, IEC/EN 60945
  • MTBF 551.478 hours
