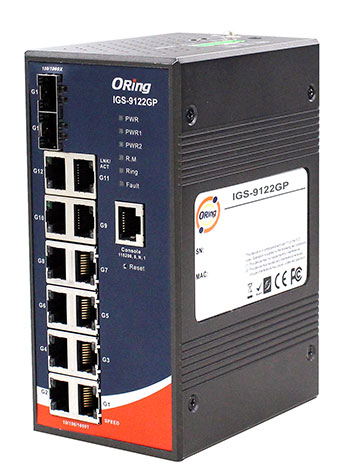

IGS-9122GP Industrial Ethernet Managed Switch

Industrial 14-port managed Gigabit Ethernet switch with 12x10/100/1000Base-T(X) and 2x100/1000Base-X, SFP socket

Overview

ORing’s managed Ethernet switches are designed for industrial applications, such as rolling stock and vehicle applications. IGS-9122GP is managed redundant ring Ethernet switch with 12x10/100/1000Base-T(X) copper ports and 2x100/1000Base-X SFP ports. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), Open-Ring, O-Chain, MRP and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40°C to 75°C. IGS-9122GP can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.

igs-9122gp

Features

  • 28Gbps Switch bandwidth and 7µs latency
  • Support IPV6 new internet protocol version
  • Support O-Ring, O-Chain, ERPS and IEC 62439-2 MRP for Ethernet redundancy
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
  • Support EtherNet/IP and Modbus TCP protocols
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
  • IEEE 802.3az Energy-Efficient Ethernet
  • Dual DC inputs
  • Rigid IP-30 housing; DIN-Rail and wall mounting

IGS-9122GP Specifications

Interfaces

  • 12x 10/100/1000Base-T(X) ports in RJ45
  • 2x 100/1000BaseX SFP Ports
  • 1x RS232 Console Port (RJ45)
  • Relay output
Regulatory Approvals

Power

  • Dual DC inputs. 12-48VDC on 6-pin terminal block
  • Power Consumption (Typ.) 13 Watts
  • Overload Current Protection Present

Environmental

  • Operating Temperature -40 to 75°C (-40 to 167°F)
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 74,3 (W) x 109,2 (D) x 153,6 (H)
  • Enclosure: metallic - IP30
  • Warranty 5 years

Accessories

  • NDR-75 series, 75W Din Rail Power Supply
  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
  • Open-Vision M500, Network Management Windows
  • DBU-01 Device Configuration Backup Unit
