IGS-T9062DGP Managed Industrial Switch

Industrial 8-port TSN Managed Gigabit Switch

Overview IGS-T9062DGP

TSN series managed Gigabit Ethernet switches are engineered for demanding industrial applications, including  manufacturing, transportation, medical systems, and smart city infrastructure. The IGS-T9062DGP is a full Layer-2 managed redundant ring Ethernet switch featuring 6x 10/100/1000Base-T(X) RJ45 ports and 2x 1G/2.5GBase-X SFP slots, delivering mission-critical performance with ultra-fast O-Ring redundancy (<30ms recovery over 250+ units), O-Chain, MRP, ERPS (G.8032 v1/v2), and MSTP (RSTP/STP compatible) to ensure zero network downtime in harsh environments. Full IEEE TSN compliance—including 802.1AS time synchronization, 802.1Qbv time-aware shaper, 802.1Qbu frame preemption, and 802.3br enhancements—provides microsecond-level determinism, ultra-low latency, low jitter, and seamless real-time data delivery for industrial control and factory automation. Advanced Layer-2 management capabilities, including QoS, VLAN, IGMP snooping, ACL security, SNMPv1/v2c/v3, RMON, and Modbus TCP, CC-Link IE TSN support, integrate with the Open-Vision platform, Web, Telnet, and CLI interfaces for simplified centralized deployment and monitoring. Rugged DIN-rail design withstands shock/vibration (IEC 60068) and wide temperature operation (-40°C to 75°C) with robust EMC immunity.

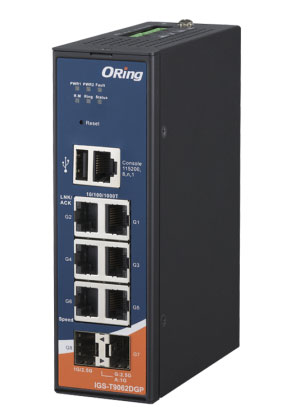

IGS-T9062DGP industrial switch

Features IGS-T9062DGP

  • 22 Gbps Switch bandwidth and 7µs latency
  • Supports TSN and IEEE 1588v2 for precise clock synchronization
  • Support IPV6 new internet protocol version
  • Supports O-Ring, O-Chain, IEC 62439-2 MRP, ERPS, and RSTP/MSTP redundancy technologies
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
  • Support Modbus TCP
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
  • Dual DC inputs
  • Rigid IP-40 housing; DIN-Rail and wall mounting

IGS-T9062DGP Specifications

Interfaces

  • 6x 10/100/1000Base-T(X) ports in RJ45
  • 2x 1G/2,5GBaseX SFP Ports
  • 1x RS232 Console Port (RJ45)
  • 1x Relay output
  • 1x Digital Input Contact
Regulatory Approvals

Power

  • Dual DC inputs. 12-48VDC on 4-pin terminal block
  • Power Consumption (Typ.) 15 Watts
  • Overload Current Protection Present

Environmental

  • Operating Temperature -40 to 75°C (-40 to 167°F)
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 45 (W) x 109 (D) x 147 (H)
  • Enclosure: metallic - IP40
  • Warranty 5 years

Accessories

  • NDR-75 series, 75W Din Rail Power Supply
  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
  • Open-Vision M500, Network Management Windows
